Flecs

Flecs is a fast and lightweight Entity Component System that lets you build games and simulations with millions of entities (join the Discord!). Here are some of the framework's highlights:

• Fast and portable zero dependency C99 API
• Modern type-safe C++11 API that doesn't use STL containers
• First open source ECS with full support for Entity Relationships!
• Fast native support for hierarchies and prefabs
• Code base that builds in less than 5 seconds
• Runs in the browser without modifications with emscripten
• Cache friendly archetype/SoA storage that can process millions of entities every frame
• Supports entities with hundreds of components and applications with tens of thousands of archetypes
• Automatic component registration that works out of the box across shared libraries/DLLs
• Write free functions with queries or run code automatically in systems
• Run games on multiple CPU cores with a fast lockless scheduler
• Verified on all major compilers and platforms with CI running more than 6000 tests
• Integrated reflection framework with JSON serializer and support for runtime components
• Unit annotations for components
• Powerful query language with support for joins and inheritance
• Statistics addon for profiling ECS performance
• A web-based UI for monitoring & controlling your apps (demo, code):

Flecs Explorer

To support the project, give it a star 🌟 !

What is an Entity Component System?

ECS is a way of organizing code and data that lets you build games that are larger, more complex and are easier to extend. Something is called an ECS when it:

• Has entities that uniquely identify objects in a game
• Has components which are datatypes that can be added to entities
• Has systems which are functions that run for all entities matching a component query

For more information, check the ECS FAQ!

Try it out!

The Flecs playground lets you try Flecs without writing any C/C++ code!

Flecs playground

To learn how to use the playground, check the Flecs Script Tutorial.

Documentation

• Quickstart
• FAQ
• Examples
• All Documentation

Performance

For a list of regularly tracked benchmarks, see the ECS Benchmark project.

Show me the code!

C99 example:

typedef struct {
  float x, y;
} Position, Velocity;

void Move(ecs_iter_t *it) {
  Position *p = ecs_field(it, Position, 1);
  Velocity *v = ecs_field(it, Velocity, 2);

  for (int i = 0; i < it->count; i++) {
    p[i].x += v[i].x;
    p[i].y += v[i].y;
  }
}

int main(int argc, char *argv[]) {
  ecs_world_t *ecs = ecs_init();

  ECS_COMPONENT(ecs, Position);
  ECS_COMPONENT(ecs, Velocity);

  ECS_SYSTEM(ecs, Move, EcsOnUpdate, Position, Velocity);

  ecs_entity_t e = ecs_new_id(ecs);
  ecs_set(ecs, e, Position, {10, 20});
  ecs_set(ecs, e, Velocity, {1, 2});

  while (ecs_progress(ecs, 0)) { }
}

Same example in C++11:

struct Position {
  float x, y;
};

struct Velocity {
  float x, y;
};

int main(int argc, char *argv[]) {
  flecs::world ecs;

  ecs.system<Position, const Velocity>()
    .each([](Position& p, const Velocity& v) {
      p.x += v.x;
      p.y += v.y;
    });

  auto e = ecs.entity()
    .set([](Position& p, Velocity& v) {
      p = {10, 20};
      v = {1, 2};
    });

  while (ecs.progress()) { }
}

Projects using Flecs

If you have a project you'd like to share, let me know on Discord!

Tempest Rising

https://store.steampowered.com/app/1486920/Tempest_Rising/

Tempest Rising

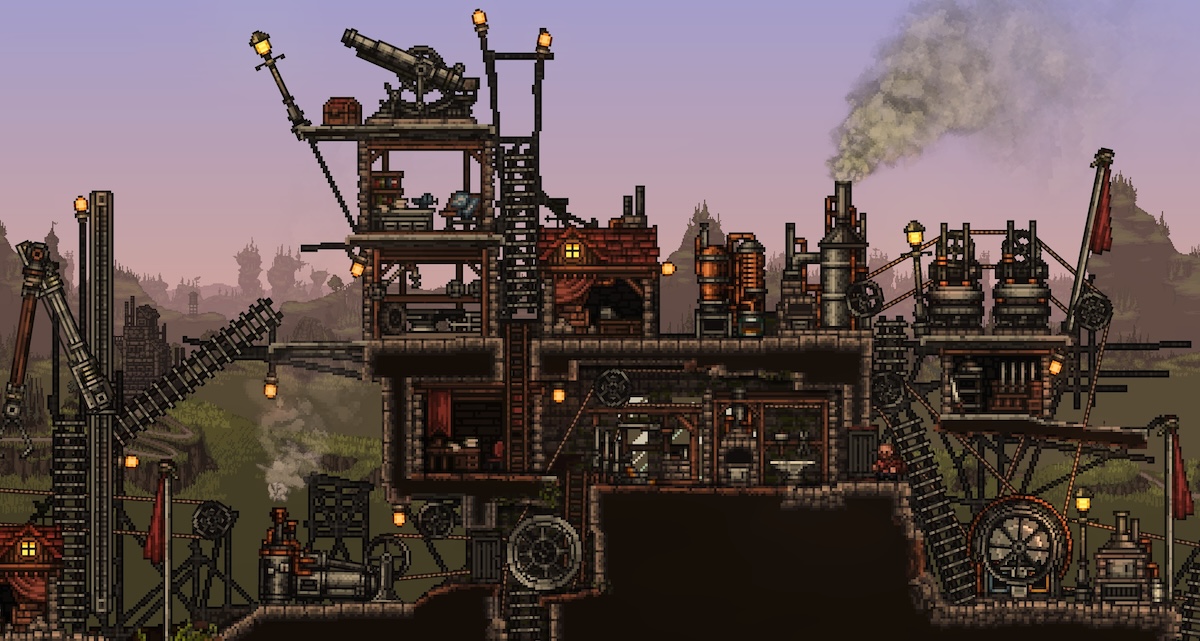

Territory Control

https://store.steampowered.com/app/690290/Territory_Control_2/


The Forge

https://github.com/ConfettiFX/The-Forge


Sol Survivor

https://nicok.itch.io/sol-survivor-demo


Equilibrium Engine

https://github.com/clibequilibrium/EquilibriumEngine


Gravitas

https://thepunkcollective.itch.io/gravitas


After Sun

https://github.com/foxnne/aftersun


Tower defense (open source demo)

https://www.flecs.dev/tower_defense/etc (repository)

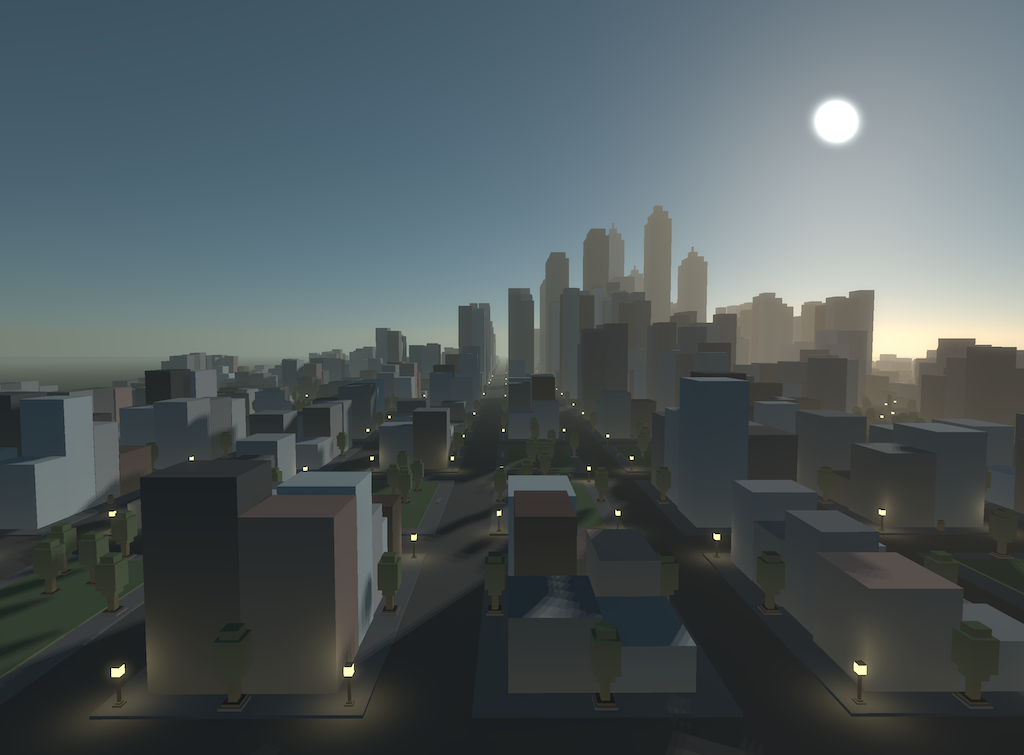

Procedural City (open source demo)

https://www.flecs.dev/city (repository)

Resources

Resources provided by the community :heart:

• Unreal Minimum Viable Flecs Project
• Bgfx/Imgui module
• Tower defense example
• Flecs + UE4 is magic
• Quickstart with Flecs in UE4
• Automatic component registration in UE4
• Building a space battle with Flecs in UE4
• Flecs + SDL + Web ASM example (live demo)
• Flecs + Raylib example
• Flecs + gunslinger example
• Flecs based 3D game engine with editor

Flecs around the web

• Discord
• Medium
• Twitter
• Reddit

Flecs Hub

Flecs Hub is a collection of repositories that show how Flecs can be used to build game systems like input handling, hierarchical transforms and rendering.

Module	Description
flecs.components.cglm	Component registration for cglm (math) types
flecs.components.input	Components that describe keyboard and mouse input
flecs.components.transform	Components that describe position, rotation and scale
flecs.components.physics	Components that describe physics and movement
flecs.components.geometry	Components that describe geometry
flecs.components.graphics	Components used for computer graphics
flecs.components.gui	Components used to describe GUI components
flecs.systems.transform	Hierarchical transforms for scene graphs
flecs.systems.physics	Systems for moving objects and collision detection
flecs.systems.sokol	Sokol-based renderer
flecs.game	Generic game systems, like a camera controller

Language bindings

The following language bindings have been developed with Flecs! Note that these are projects built and maintained by helpful community members, and may not always be up to date with the latest commit from master!

• C#:
  • flecs-hub/flecs-cs
  • BeanCheeseBurrito/Flecs.NET
  • copygirl/gaemstone.ECS
• Rust:
  • flecs-rs
  • flecs-polyglot
• Zig:
  • michal-z/zig-gamedev
  • foxnne/zig-flecs
  • prime31/zig-flecs
• Lua:
  • sro5h/flecs-luajit
  • flecs-hub/flecs-lua
